Recent EU built, few operational hours, well/fully documented, complete with the necessary accessories such as a Deck interface, Winch, Spooling device, HPU, HPU E‐ control unit & Control Cabin. Also available similar A-frames, recent built, also well/fully documented, few running hours, including same/similar accessories in a 200 ton and a 250 ton configuration. Location: Singapore region. Enquire

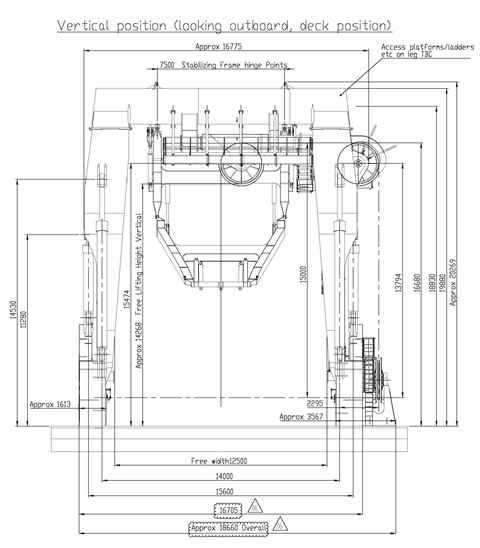

| Dimensions | |
| Pivot points C-C distance | 14.0 m |
| Width (overall) | 18.7 m |
| Height (overall) | 20.3 m (vertical, over deck) |
| Free height (light opening) | 15.5 m (vertical, over deck) |
| Lifting height | 14.3 m (vertical, over deck) |
| Weights Approx. | |
| A-frame, w/o cylinders/found. brackets | 154 ton (dry, max.) |
| Deck foundation brackets | LHS 34 ton & RHS 50 ton |
| Long cylinders (x2) | 15 ton each (dry, max.) |
| Short cylinders (x2) | 7.5 ton each (dry, max.) |
